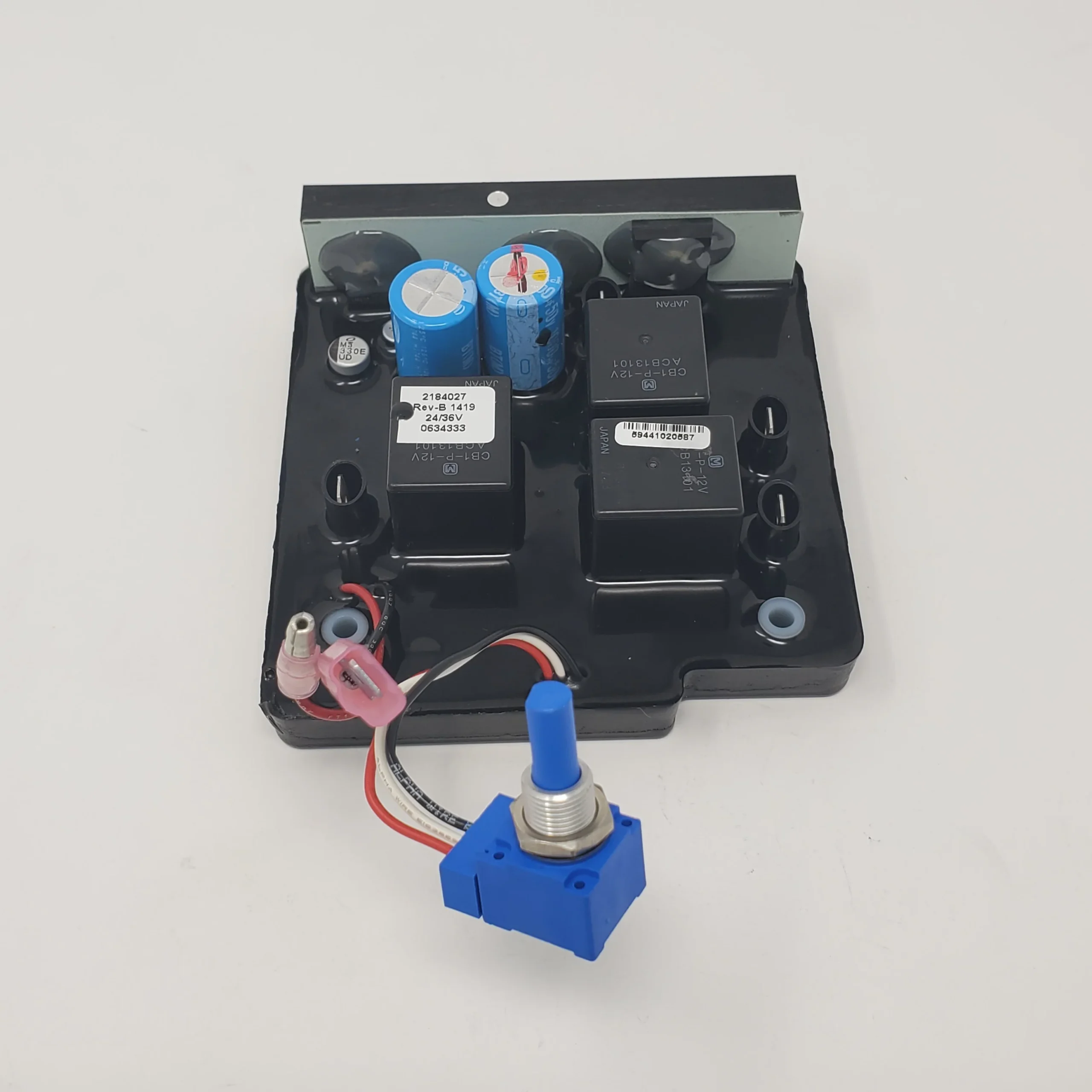

Minn Kota 2774037 control board

2774037 Minn Kota Maxxum 24/36V Hand Control Main Board

Installation Instructions

The above part number supersedes the following old part numbers: 2184007, 2184017, 2184027

This is a direct replacement for hand controlled variable speed Minn Kota trolling motors.

The following 2009 and newer models with thrust levels of 65 to 112 lbs use this board:

• Traxxis
• Maxxum/HC
• Fortrex/HC
• RT/SE
• RT/SM
• RT/s
• RT/t

WARRANTY/RETURN INFORMATION: All Minn Kota electrical items are tested first by the manufacturer and a second time before leaving our facility. Since they are tested twice, the chance of the items being inoperative is very unlikely. In the event that you have any questions regarding the installation of your item, please contact us before doing so. We do not accept returns on used/installed electrical items.

If for some reason you do not need the part you've ordered, it must be returned as unused, uninstalled in the original package with all of the original contents.

Minn Kota 2774037 Maxxum 24/36V Hand Control Main Board

Keep your trolling motor’s hand-control system performing as intended with the Minn Kota 2774037 main control board. Designed for select 24V and 36V Minn Kota hand-controlled, variable-speed motors, this replacement part is a practical option when servicing a compatible motor. Its part number gives you a clear reference point when matching the board to your existing equipment.

Minn Kota 2774037 control board

A well-matched replacement component can help you get your motor back to the kind of responsive speed control you rely on while fishing, maneuvering or holding position. If you are repairing a Minn Kota Maxxum or another compatible hand-control model, check the motor’s identification label and parts documentation to confirm that 2774037 is the correct board.

Designed for select hand-control motors

Part 2774037 is listed as a 24/36V control board for hand-controlled, variable-speed Minn Kota trolling motors. Retailer fitment references include select Maxxum/HC, Fortrex/HC, Traxxis and Riptide models. Compatibility is model- and year-specific, so use your motor’s serial number and official parts diagram to verify fit before purchase.

The number 2774037 is also associated with earlier part numbers 2184007, 2184017 and 2184027 in retailer parts references. If your service documentation shows one of those numbers, compare the motor model and revision details before choosing a replacement. Matching by appearance alone may not identify the correct component.

A useful part for a focused repair

When a control issue arises, replacing the appropriate board can be part of restoring normal motor operation. This board is intended for specified hand-control systems; it is not a universal trolling motor control board. Checking voltage, motor series, model year and part number helps ensure your selected component matches the system you are servicing.

For a smooth repair process, gather your motor’s model information before ordering and compare it with the fitment details on the product page. If you are uncertain, use the Minn Kota parts diagram or ask a qualified marine technician to identify the correct component. Getting the match right helps you move forward with the repair and return your attention to time on the water.

Check the package details

The item name identifies the main board, but package contents can vary by seller or listing. Review the Lake Marine Electronics product page to confirm exactly what is included, as well as current availability and condition. Do not assume that wiring, fasteners or installation accessories are included unless the listing specifically says so.

Electrical components should be installed according to the applicable service instructions. If you do not have the tools or experience for the repair, a qualified technician can help confirm fitment and complete the installation.

Shop Minn Kota parts at Lake Marine Electronics

Minn Kota 2774037 control board

Find the Minn Kota 2774037 control board at Lake Marine Electronics and use the part number to compare it with your motor’s service information. This component is intended for select 24/36V hand-control applications, making accurate compatibility checks an important step in choosing the right replacement.
